zabbix 邮件、钉钉、企业微信告警

一、邮件告警（外部方式）

1.安装发送工具

yum install mail.rc -y

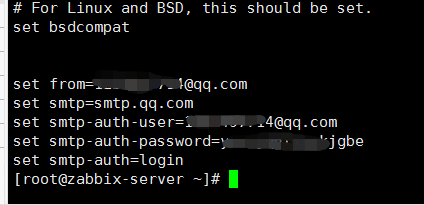

2.配置zabbix服务端外部邮箱

vim /etc/mail.rc  //注意邮箱需要开启客户端授权码进行第三方登录
————文件末尾新增————
set from=xxxx@163.com\xxxx@qq.com
set smtp=smtp.163.com\smtp.qq.com
set smtp-auth-user=xxxx@163.com\xxxx@qq.com
set smtp-auth-password=xxxx//授权码
set smtp-auth=login
注：网易邮箱或QQ邮箱的授权码，POP3/SMTP必须打开

3.配置发送脚本

邮件必须在alertscripts目录下，否则识别不出来

目录： /usr/lib/zabbix/alertscripts

创建邮件脚本

vim mailx.sh

#!/bin/bash
#send mail
messages=`echo $3 | tr '\r\n' '\n'`
subject=`echo $2 | tr '\r\n' '\n'`
echo "${messages}" | mail -s "${subject}" $1 >>/tmp/mailx.log 2>&1

————注释————
$1:收件人邮箱地址；
$2:邮件标题；
$3:邮件内容

目录赋权

[root@zabbix-server alertscripts]# touch /tmp/mailx.log
[root@zabbix-server alertscripts]# chown -R zabbix.zabbix /tmp/mailx.log
[root@zabbix-server alertscripts]# chmod +x /usr/lib/zabbix/alertscripts/mailx.sh
[root@zabbix-server alertscripts]# chown -R zabbix.zabbix /usr/lib/zabbix

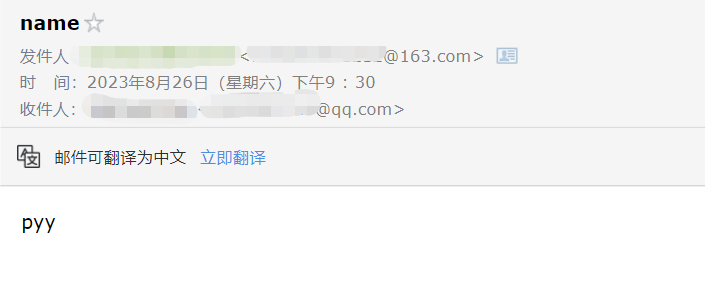

4.测试脚本

[root@zabbix-server alertscripts]#  ./mailx.sh xxxx@qq.com “name” ”pyy”

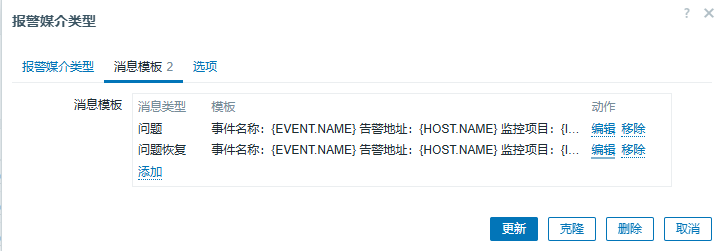

5.配置 web 界面

点击 左侧 告警---媒介 右上角---创建媒介类型

脚本参数：

{ALERT.SENDTO}              //宏变量_代表告警接收者地址
{ALERT.SUBJECT}             //宏变量_告警主题
{ALERT.MESSAGE}             //宏变量_表示告警详细信息

-=【告警通知】=-
事件名称：{EVENT.NAME}
告警地址：{HOST.NAME}
监控项目：{ITEM.NAME}
监控取值：{ITEM.LASTVALUE}
告警严重性：{EVENT.SEVERITY}
当前状态：{ITEM.LASTVALUE} {EVENT.NAME}
告警时间：{EVENT.DATE} {EVENT.TIME}
告警平台：http://192.168.97.150:8080


-=【恢复通知】=-
事件名称：{EVENT.NAME}
告警地址：{HOST.NAME}
监控项目：{ITEM.NAME}
告警严重性：{EVENT.SEVERITY}
当前状态：{ITEM.LASTVALUE}
告警时间：{EVENT.DATE} {EVENT.TIME}
恢复时间：{EVENT.RECOVERY.TIME}
持续时间：{EVENT.AGE}
告警平台：http://192.168.97.150:8080

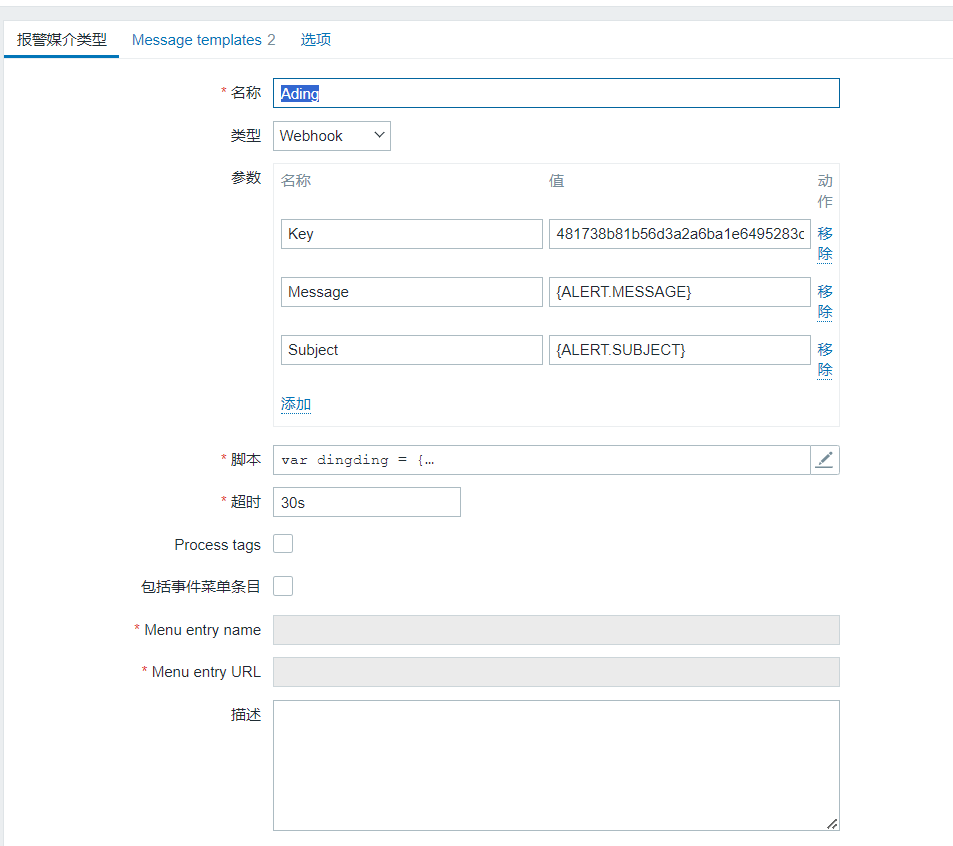

二、钉钉告警（Webhook方式）

参数：

Key                                    //宏变量_钉钉地址
SUBJECT    {ALERT.SUBJECT}             //宏变量_告警主题
MESSAGE    {ALERT.MESSAGE}             //宏变量_表示告警详细信息

var dingding = {
  key: null,
  message: null,
  msgtype: "markdown",
  proxy: null,
sendMessage: function () {
    var params = {
       msgtype: dingding.msgtype,
       markdown: {
          title: "告警",
          text: dingding.message
        },
      },
      data,
      response,
      request = new CurlHttpRequest(),
      url =
        "https://oapi.dingtalk.com/robot/send?access_token=" +
        dingding.key;
    if (dingding.proxy) {
      request.setProxy(dingding.proxy);
    }
    request.AddHeader("Content-Type: application/json");
    data = JSON.stringify(params);
    // Remove replace() function if you want to see the exposed key in the log file.
    Zabbix.Log(
      4,
      "[dingding Webhook] URL: " + url.replace(dingding.key, "<BOT KEY>")
    );
    Zabbix.Log(4, "[dingding Webhook] params: " + data);
    response = request.Post(url, data);
    Zabbix.Log(4, "[dingding Webhook] HTTP code: " + request.Status());
    try {
      response = JSON.parse(response);
    } catch (error) {
      response = null;
    }
    if (request.Status() !== 200 || response.errcode !== 0) {
      if (typeof response.errmsg === "string") {
        throw response.errmsg;
      } else {
        throw "Unknown error. Check debug log for more information.";
      }
    }
  },
};
try {
  var params = JSON.parse(value);
  if (typeof params.Key === "undefined") {
    throw 'Incorrect value is given for parameter "Key": parameter is missing';
  }
  dingding.key = params.Key;
  if (params.HTTPProxy) {
    dingding.proxy = params.HTTPProxy;
  }
  dingding.to = params.To;
  dingding.message = params.Subject + "\n" + params.Message;
  dingding.sendMessage();
  return "OK";
} catch (error) {
  Zabbix.Log(4, "[dingding Webhook] notification failed: " + error);
  throw "Sending failed: " + error + ".";

三、钉钉告警（python方式）

1.钉钉告警机器人关键词设置

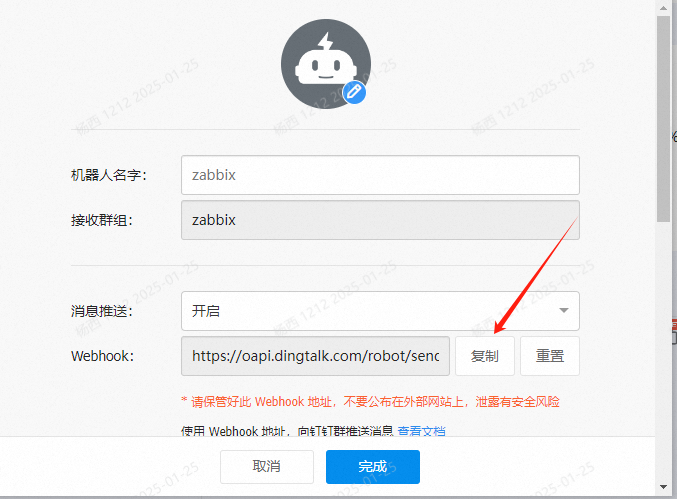

2、完整复制webhook

3、配置钉钉脚本

安装pthon3.8

        [root@zabbix-server ~]# yum install python3.8    //安装python
        [root@zabbix-server ~]# whereis python3.8     //查看python3.8位置

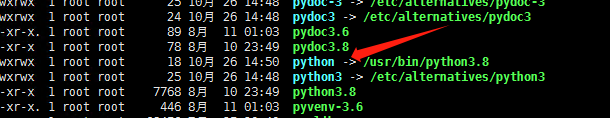

进入python目录，配置软连接

[root@zabbix-server ~]# cd /usr/bin    //进入python目录
[root@zabbix-server bin]#  ln -s /usr/bin/python3.8 python     //配置软连接

#!/usr/bin/env python
# -*- coding: utf-8 -*-
import requests
import json
import sys
import os
import datetime
webhook = "修改为自己机器人的webhook地址即可"
user=sys.argv[1]
subject=sys.argv[2]
text=sys.argv[3]
data={
        "msgtype": "text",
        "text": {
                "content": "%s%s"%(subject,text)
        },
        "at": {
                "atMobiles": [
                        user
                        ],
                        "isAtAll": False
        }
}
headers = {'Content-Type': 'application/json'}
x=requests.post(url=webhook,data=json.dumps(data),headers=headers)
if os.path.exists("/usr/lib/zabbix/alertscripts/log/dingding.log"):
        f=open("/usr/lib/zabbix/alertscripts/log/dingding.log","a+")
else:
        f=open("/usr/lib/zabbix/alertscripts/log/dingding.log","w+")
f.write("\n"+"--"*30)
if x.json()["errcode"] == 0:
        f.write("\n"+str(datetime.datetime.now())+"    "+str(user)+"    "+"发送成功"+"\n"+str(text))
        f.close()
else:
        f.write("\n"+str(datetime.datetime.now())+"    "+str(user)+"    "+"发送失败"+"\n"+str(text))
        f.close()

赋权目录

#为脚本添加执行权限
[root@zabbix alertscripts]# chmod +x dingding.py

#修改脚本的属主和属组：
[root@zabbix alertscripts]# chown zabbix.zabbix dingding.py

创建日志文件：
[root@zabbix alertscripts]# mkdir -p /usr/lib/zabbix/alertscripts/log/
[root@zabbix alertscripts]# touch /usr/lib/zabbix/alertscripts/log/dingding.log
[root@zabbix alertscripts]# chown zabbix.zabbix -R /usr/lib/zabbix/alertscripts/log/

测试钉钉是否能接收到告警信息

#py脚本 手机号 关键词 告警信息
./dingding.py xxxxxxx 告警 test
